Our wide range of Rectangular hollow sections finds usage in many industries. Our products are internationally standards and tested by parameters of strength, rigidity, and other ratios. Rectangular hollow sections are more efficient than other steel sections in terms of torsion rigidity and compressive strength.
The strength of weight ratio is excellent with metals joint easily and it transforms good design structures. They are suitable for wide variety of uses in building frames, truss, gates, Stands, rails, towers, and many others. We supply remarkable and excellent strength quality Rectangular hollow sections all across the India.
These sections can be easily cut, drilled and joint so it can be used effectively for welding. We involved in delivering superior quality rectangular hollow sections which are made from high quality raw materials from best vendors which ensure durability at its user end, depending up on there are of requirement.
Higher strength to weight ratio credits these sections with nearly 20% reduction in the use of steel.
They have increased tensile capacity because of concentric connections and increased compressive strength because of higher radius of gyration.
They possess full strength under bending moment due to superior torsion rigidity.
Outer smooth profile ensures no trappings of dirt and water, thus reducing chances of corrosion reaction.

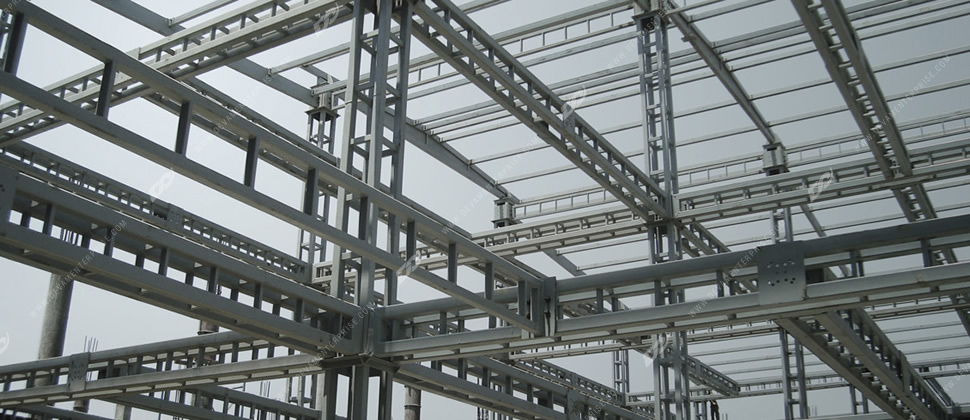

For Heavy Engineering Work
RHS D X B mm | Thickness mm | Sec Area A cm2 | Unit W kg/m | Moment of Inertia | Radius of Gyration | Elastic Modulus | Torsional Constants | Other Surface | ||||
lxx cm4 | lyy cm4 | rxx cm | ryy cm | Zxx cm3 | zyy cm3 | J cm4 | B cm3 | Area per mm2 | ||||
50x25 | 2 | 2.74 | 2.15 | 8.38 | 2.81 | 1.75 | 1.01 | 3.35 | 2.25 | 6.79 | 3.79 | 0.142 |
2.6 | 3.46 | 2.71 | 10.16 | 3.36 | 1.71 | 0.99 | 4.06 | 2.69 | 8.27 | 4.53 | 0.137 | |
32 | 4.13 | 3.24 | 11.63 | 3.8 | 1.68 | 0.96 | 4.65 | 3.04 | 9.52 | 5.12 | 0.134 | |
4 | 4.95 | 3.88 | 13.13 | 4.23 | 1.65 | 0.92 | 5.25 | 3.38 | 10.86 | 5.69 | 0.129 | |
60x40 | 2.6 | 4.76 | 3.73 | 22.76 | 12.9 | 2.19 | 1.59 | 7.59 | 6.05 | 25.59 | 9.83 | 0.187 |
2.9 | 5.25 | 4.12 | 24.74 | 13.11 | 2.17 | 1.58 | 8.25 | 6.56 | 28.02 | 10.66 | 0.185 | |
3.6 | 6.35 | 4.98 | 28.91 | 15.23 | 2.13 | 1.55 | 9.63 | 7.62 | 33.3 | 12.41 | 0.181 | |
4.5 | 7.67 | 6.02 | 33.31 | 17.44 | 2.08 | 1.51 | 11.1 | 8.72 | 39.84 | 14.29 | 0.177 | |
66x33 | 2.6 | 4.7 | 3.69 | 25.15 | 8.43 | 2.31 | 1.37 | 7.62 | 5.11 | 20.75 | 8.71 | 0.185 |
2.9 | 5.19 | 4.07 | 27.33 | 9.12 | 2.29 | 1.33 | 8.28 | 5.53 | 22.65 | 9.43 | 0.183 | |
3.6 | 6.28 | 4.93 | 31.87 | 10.52 | 2.25 | 1.29 | 9.66 | 6.37 | 26.71 | 10.9 | 0.179 | |
4.5 | 7.58 | 5.95 | 36.64 | 11.93 | 2.2 | 1.25 | 11.1 | 7.23 | 31.21 | 12.43 | 0.175 | |
80x40 | 2.6 | 5.8 | 4.55 | 45.58 | 15.75 | 2.84 | 1.65 | 11.65 | 7.87 | 35.5 | 13.46 | 0.227 |
3.2 | 7.01 | 5.5 | 54.94 | 18.41 | 2.8 | 1.62 | 13.74 | 9.21 | 45.83 | 15.78 | 0.224 | |
4 | 8.55 | 6.71 | 64.79 | 21.49 | 2.75 | 1.59 | 16.2 | 10.74 | 54.77 | 18.49 | 0.219 | |
4.8 | 10.01 | 7.85 | 73.22 | 24.03 | 2.71 | 1.55 | 18.3 | 12.02 | 62.81 | 20.79 | 0.215 | |
96x48 | 3.2 | 8.54 | 6.71 | 98.61 | 33.28 | 3.4 | 1.97 | 20.54 | 13.87 | 82.13 | 23.82 | 0.272 |
4 | 10.47 | 8.22 | 117.54 | 39.32 | 3.85 | 1.94 | 24.49 | 16.38 | 99.11 | 28.24 | 0.267 | |
4.8 | 12.31 | 9.66 | 134.35 | 44.55 | 3.8 | 1.9 | 27.99 | 18.56 | 114.8 | 32.14 | 0.263 | |
122x61 | 3.6 | 12.32 | 9.67 | 232.61 | 78.83 | 4.34 | 2.53 | 37.13 | 25.84 | 193.91 | 44.5 | 0.347 |
4.5 | 15.14 | 11.88 | 278.94 | 93.78 | 4.29 | 2.49 | 45.73 | 30.75 | 235.39 | 53.13 | 0.343 | |
5.4 | 17.85 | 14.01 | 320.83 | 107.03 | 4.24 | 2.45 | 52.6 | 35.09 | 274.29 | 60.89 | 0.338 | |
145x82 | 4.8 | 20.28 | 15.92 | 555.16 | 228.5 | 5.23 | 3.36 | 75.57 | 55.73 | 534.27 | 94.45 | 0.429 |
5.4 | 22.6 | 17.74 | 610.85 | 250.59 | 5.2 | 3.33 | 84.26 | 51.12 | 592.7 | 130.81 | 0.426 | |
172x92 | 4.8 | 23.83 | 18.71 | 917.13 | 346.91 | 6.2 | 3.82 | 106.64 | 75.41 | 826.04 | 128.85 | 0.503 |
5.4 | 26.59 | 20.88 | 1012.47 | 281.74 | 6.17 | 3.79 | 117.73 | 82.99 | 918.1 | 142.04 | 0.5 | |
200x100 | 4 | 22.95 | 18.01 | 1199.71 | 410.78 | 7.23 | 4.23 | 119.97 | 8216 | 991.41 | 141.46 | 0.579 |
5 | 28.36 | 22.26 | 1459.25 | 496.94 | 7.17 | 4.19 | 145.93 | 99.39 | 1216.93 | 171.53 | 0.574 | |
6 | 33.63 | 25.4 | 1703.31 | 576.91 | 7.12 | 4.14 | 170.33 | 115.88 | 1434.03 | 199.68 | 0.569 | |
8 | 43.79 | 34.38 | 2146.21 | 719.19 | 7 | 4.05 | 214.62 | 143.84 | 1843.86 | 250.68 | 0.559 | |
240x120 | 4 | 27.75 | 21.78 | 2110.72 | 725.35 | 8.72 | 5.11 | 175.89 | 120.89 | 1736.39 | 208.03 | 0.699 |
5 | 34.36 | 26.97 | 2579.67 | 882.47 | 8.67 | 5.07 | 214.97 | 147.08 | 2138.48 | 253.55 | 0.694 | |
6 | 40.83 | 32.05 | 3025.91 | 1030.45 | 8.61 | 5.02 | 252.16 | 171.74 | 2528.39 | 296.7 | 0.689 | |
8 | 53.39 | 41.91 | 385184 | 1299.95 | 8.49 | 4.93 | 320.99 | 216.66 | 3272.9 | 276.29 | 0.679 | |
300x150 | 6 | 51.63 | 40.53 | 6073.51 | 2073.57 | 10.85 | 6.35 | 404.9 | 277.28 | 5034.64 | 478.2 | 0.869 |
8 | 67.79 | 53.22 | 7807.95 | 2654.12 | 10.73 | 6.26 | 520.53 | 353.88 | 6559.05 | 612.64 | 0.859 | |
10 | 83.43 | 65.49 | 9403.9 | 3173.71 | 10.62 | 6.17 | 626.93 | 423.16 | 8011.67 | 736.01 | 0.848 | |
300x200 | 6 | 57.63 | 45.24 | 7370.23 | 3962.19 | 11.31 | 8.29 | 491.35 | 396.22 | 8186.02 | 650.85 | 0.969 |
8 | 75.79 | 59.5 | 9513.66 | 5097.04 | 11.2 | 8.2 | 634.24 | 509.7 | 10722.83 | 839.51 | 0.959 | |
10 | 93.43 | 73.34 | 11507.24 | 6144.3 | 11.1 | 8.11 | 767.15 | 614.43 | 13169.7 | 1015.43 | 0.948 |
RHS D X B mm | Thickness mm | Sec Area A cm2 | Unit W kg/m | Moment of Inertia | Radius of Gyration | Elastic Modulus | Torsional Constants | Other Surface | ||||
lxx cm4 | lyy cm4 | rxx cm | ryy cm | Zxx cm3 | zyy cm3 | J cm4 | B cm3 | Area per mm2 | ||||
25x25 | 2 | 1.74 | 1.36 | 1.48 | 1.48 | 0.92 | 0.92 | 1.19 | 1.19 | 2.29 | 1.68 | 0.09 |
2.6 | 2.16 | 1.69 | 1.72 | 1.72 | 0.89 | 0.89 | 1.38 | 1.38 | 2.68 | 1.92 | 0.087 | |
3.2 | 2.53 | 1.98 | 1.89 | 1.89 | 0.86 | 0.86 | 1.51 | 1.51 | 2.96 | 2.07 | 0.084 | |
32x32 | 2 | 2.3 | 1.8 | 3.36 | 3.36 | 1.21 | 1.21 | 2.1 | 2.1 | 5.3 | 3.05 | 0.118 |
2.6 | 2.88 | 2.26 | 4.02 | 4.02 | 1.18 | 1.18 | 2.51 | 2.51 | 6.45 | 3.63 | 0.115 | |
3.2 | 3.42 | 2.69 | 4.54 | 4.54 | 4.15 | 1.15 | 2.84 | 2.84 | 7.41 | 4.07 | 0.112 | |
38x38 | 2.6 | 3.51 | 2.75 | 7.14 | 7.14 | 1.43 | 1.43 | 3.76 | 3.76 | 11.51 | 5.49 | 0.139 |
3.2 | 4.19 | 3.29 | 8.18 | 818 | 1.4 | 1.4 | 4.3 | 4.3 | 13.45 | 6.28 | 0.136 | |
4 | 5.03 | 3.95 | 9.26 | 9.26 | 1.36 | 1.36 | 4.87 | 4.87 | 15.67 | 7.12 | 0.131 | |
40x40 | 2.6 | 3.72 | 2.92 | 8.45 | 8.45 | 1.51 | 1.51 | 4.22 | 4.22 | 13.63 | 6.2 | 0.147 |
3.2 | 4.45 | 3.49 | 9.72 | 9.72 | 1.48 | 1.48 | 4.86 | 4.86 | 16 | 7.12 | 0.144 | |
4 | 5.35 | 4.2 | 11.07 | 11.07 | 1.44 | 1.44 | 5.54 | 5.54 | 18.75 | 8.12 | 0.139 | |
50x50 | 2.6 | 4.76 | 3.74 | 17.47 | 17.47 | 1.92 | 1.92 | 6.99 | 6.99 | 28.53 | 10.37 | 0.187 |
2.9 | 5.25 | 4.12 | 18.99 | 18.99 | 1.9 | 1.9 | 7.6 | 7.6 | 31.15 | 11.23 | 0.185 | |
3.6 | 6.35 | 4.98 | 22.15 | 22.15 | 1.87 | 1.87 | 8.86 | 8.86 | 36.58 | 12.98 | 0.181 | |
4.5 | 7.67 | 6.02 | 25.5 | 25.5 | 1.82 | 1.82 | 10.2 | 10.2 | 41.99 | 14.68 | 0.177 | |
60x60 | 2.6 | 5.8 | 4.55 | 31.33 | 31.33 | 2.33 | 2.33 | 10.44 | 10.44 | 50.08 | 15.52 | 0.227 |
3.2 | 7.01 | 5.5 | 36.94 | 36.91 | 2.3 | 2.3 | 12.31 | 12.31 | 60.02 | 18.31 | 0.224 | |
4 | 8.55 | 6.71 | 43.55 | 43.55 | 2.26 | 2.26 | 14.52 | 14.52 | 72.41 | 21.62 | 0.219 | |
4.8 | 10.01 | 7.85 | 49.22 | 49.22 | 2.22 | 2.22 | 16.41 | 16.41 | 83.86 | 24.51 | 0.215 | |
72x72 | 3.2 | 8.54 | 6.71 | 66.32 | 66.32 | 2.79 | 2.79 | 18.42 | 18.42 | 106.81 | 27.47 | 0.272 |
4 | 10.47 | 8.22 | 79.03 | 19.03 | 2.75 | 2.75 | 21.95 | 21.95 | 129.85 | 32.78 | 0.267 | |
4.8 | 12.31 | 9.66 | 90.31 | 90.31 | 2.71 | 2.71 | 25.09 | 25.09 | 151.55 | 37.55 | 0.263 | |
80x80 | 3.2 | 9.57 | 7.51 | 92.71 | 9271 | 3.11 | 3.11 | 23.18 | 23.18 | 148.55 | 35.6 | 0.204 |
4 | 11.75 | 9.22 | 111.04 | 111.04 | 3.07 | 3.07 | 27.76 | 27.76 | 181.22 | 41.49 | 0.299 | |
4.8 | 13.85 | 10.87 | 127.58 | 127.58 | 3.04 | 3.04 | 31.89 | 31.89 | 212.26 | 47.77 | 0.295 | |
91.5x91.5 | 3.6 | 12.32 | 9.67 | 156.49 | 156.19 | 3.56 | 3.56 | 34.21 | 34.21 | 251.27 | 51.14 | 0.347 |
4.5 | 15.14 | 11.88 | 187.57 | 187.57 | 3.52 | 3.52 | 41 | 41 | 306.78 | 61.4 | 0.343 | |
5.41 | 17.85 | 14.01 | 215.68 | 215.68 | 3.48 | 3.48 | 47.14 | 47.14 | 359.76 | 70.77 | 0.338 | |
100x100 | 4 | 14.95 | 11.73 | 226.35 | 226.35 | 3.89 | 3.89 | 45.27 | 45.27 | 364.75 | 67.5 | 0.379 |
5 | 18.36 | 14.41 | 271.1 | 271.1 | 3.84 | 3.84 | 54.22 | 54.22 | 441.84 | 80.54 | 0.374 | |
6 | 21.63 | 16.98 | 311.47 | 311.47 | 3.79 | 3.79 | 62.29 | 62.29 | 511.8 | 92.06 | 0.369 | |
4.8 | 20.28 | 15.92 | 393.3 | 393.3 | 4.4 | 4.4 | 69.3 | 39.3 | 637.45 | 103.89 | 0.429 | |
5.4 | 22.6 | 17.74 | 432.58 | 432.58 | 4.38 | 4.38 | 76.23 | 76.23 | 708.69 | 114.41 | 0.426 | |
132x132 | 4.8 | 23.83 | 18.71 | 634.39 | 634.39 | 5.16 | 5.16 | 96.12 | 96.12 | 1018.3 | 144.11 | 0.503 |
5.4 | 26.6 | 20.88 | 700.11 | 700.11 | 5.13 | 5.13 | 106.08 | 106.08 | 1134.25 | 159.18 | 0.5 | |
150x150 | 4 | 22.95 | 18.01 | 807.82 | 807.82 | 5.93 | 5.93 | 107.71 | 107.71 | 1273.46 | 161.38 | 0.579 |
5 | 28.36 | 22.26 | 982.12 | 982.12 | 8.89 | 5.89 | 130.95 | 130.95 | 1569.09 | 196.38 | 0.574 | |
6 | 33.63 | 25.4 | 1145.91 | 1145.91 | 5.84 | 5.84 | 152.79 | 152.79 | 1856.18 | 229.44 | 0.569 | |
8 | 43.79 | 34.38 | 1443 | 1443 | 5.74 | 5.74 | 192.4 | 192.4 | 2405.78 | 290.12 | 0.559 | |
180x180 | 4 | 27.75 | 21.78 | 1421.74 | 1421.74 | 7.16 | 7.16 | 157.97 | 157.97 | 2224.31 | 236.74 | 0.699 |
5 | 34.36 | 26.97 | 1736.87 | 1736.87 | 7.11 | 7.11 | 19299 | 192.99 | 2747.93 | 289.4 | 0.694 | |
6 | 40.83 | 32.05 | 2036.52 | 2036.52 | 7.06 | 7.06 | 226.28 | 226.28 | 3259.23 | 339.65 | 0.689 | |
8 | 53.39 | 41.91 | 2590.73 | 2590.73 | 6.97 | 6.97 | 287.86 | 287.86 | 4246.16 | 433.32 | 0.679 | |
220x220 | 5 | 42.36 | 33.25 | 3238.12 | 3238.12 | 8.74 | 8.74 | 234.37 | 234.37 | 5083.17 | 440.67 | 0.854 |
6 | 50.43 | 39.59 | 3813.36 | 3813.36 | 8.7 | 8.7 | 346.67 | 346.67 | 6034.53 | 520.18 | 0.849 | |
8 | 66.19 | 51.96 | 4894.99 | 4894.99 | 8.6 | 8.6 | 445 | 445 | 7897.48 | 668.99 | 0.839 | |
10 | 81.43 | 63.92 | 5887.19 | 5887.19 | 8.5 | 8.5 | 535.2 | 535.2 | 9549.15 | 796.48 | 0.829 | |
250x250 | 6 | 57.63 | 45.24 | 5672 | 5672 | 9.92 | 9.92 | 453.76 | 453.76 | 8920.44 | 68077 | 0.969 |
8 | 75.79 | 59.5 | 7315.65 | 7315.65 | 9.82 | 9.82 | 585.25 | 585.25 | 11702.07 | 879.31 | 0.959 | |
10 | 93.43 | 73.34 | 8842.29 | 8842.29 | 9.73 | 9.73 | 707.38 | 707.38 | 14248.15 | 1054.68 | 0.949 |
Nominal Bore mm | Outside Diameter mm | Thickness mm | Weight kg/m | Area Cross Section cm2 | Outside Surface Area/m cm2/m |
Moment of Inertia cm4 | Section Modulus cm3 | Radius of Gyration cm |
15 | 21.3 | 2 | 0.95 | 1.21 | 669 | 0.57 | 0.54 | 0.69 |
2.60 | 1.21 | 1.53 | 0.69 | 0.64 | 0.66 | |||
3.20 | 1.44 | 1.82 | 0.75 | 0.70 | 0.65 | |||
20 | 26.9 | 2.30 | 1.38 | 1.78 | 845 | 1.36 | 1.01 | 0.87 |
2.60 | 1.56 | 1.98 | 1.48 | 1.10 | 0.86 | |||
3.20 | 1.87 | 2.38 | 1.70 | 1.26 | 0.84 | |||
25 | 33.7 | 2.60 | 1.98 | 2.54 | 1059 | 3.09 | 1.83 | 1.10 |
3.20 | 2.41 | 3.06 | 3.61 | 2.14 | 1.08 | |||
4.00 | 2.93 | 3.73 | 4.19 | 2.48 | 1.05 | |||
32 | 42.4 | 2.90 | 2.54 | 3.25 | 1332 | 6.47 | 3.05 | 1.41 |
3.20 | 3.01 | 3.94 | 7.62 | 3.59 | 1.39 | |||
4.00 | 3.79 | 4.82 | 8.99 | 4.25 | 1.36 | |||
40 | 48.3 | 2.90 | 3.23 | 4.13 | 1517 | 10.70 | 4.43 | 1.61 |
3.20 | 3.56 | 4.53 | 11.59 | 4.80 | 1.59 | |||
4.00 | 4.37 | 5.56 | 13.77 | 5.70 | 1.57 | |||
50 | 60.3 | 2.90 | 4.08 | 5.23 | 1895 | 21.59 | 7.16 | 2.03 |
3.60 | 5.03 | 6.41 | 25.88 | 8.59 | 2.00 | |||
4.50 | 6.19 | 7.88 | 30.90 | 10.20 | 1.98 | |||
65 | 76.1 | 2.90 | 5.71 | 7.32 | 2391 | 48.79 | 12.82 | 2.58 |
3.60 | 6.42 | 8.20 | 54.02 | 14.20 | 2.57 | |||
4.50 | 7.93 | 10.10 | 65.12 | 17.10 | 2.54 | |||
80 | 88.9 | 3.20 | 6.72 | 8.61 | 2793 | 19.23 | 17.82 | 3.03 |
4.00 | 8.36 | 10.70 | 96.86 | 21.68 | 3.00 | |||
4.80 | 9.90 | 12.70 | 112.52 | 25.31 | 2.98 | |||
100 | 114.3 | 3.60 | 9.75 | 12.50 | 3591 | 192.03 | 33.60 | 3.92 |
4.50 | 12.20 | 15.50 | 234.30 | 41.00 | 3.89 | |||
5.40 | 14.50 | 18.50 | 274.50 | 48.00 | 3.85 | |||
125 | 139.7 | 4.50 | 15.00 | 19.10 | 4389 | 437.20 | 62.60 | 4.78 |
4.80 | 15.90 | 20.30 | 463.44 | 66.36 | 4.77 | |||
5.40 | 17.90 | 22.80 | 514.50 | 73.70 | 4.75 | |||
150 | 165.1 | 4.50 | 17.80 | 22.70 | 5187 | 732.60 | 88.74 | 5.68 |
4.80 | 18.90 | 24.20 | 777.32 | 94.16 | 5.67 | |||
5.40 | 21.30 | 27.10 | 864.70 | 105.00 | 5.65 | |||
200 | 219.1 | 4.80 | 25.38 | 32.33 | 6886 | 1856.78 | 169.49 | 7.58 |
6.00 | 31.51 | 40.14 | 2281.95 | 208.80 | 7.54 | |||
8.00 | 41.67 | 53.08 | 2960.82 | 270.27 | 7.47 | |||
10.00 | 51.59 | 65.72 | 3599.89 | 328.61 | 7.40 | |||
250 | 273 | 6.00 | 39.51 | 50.30 | 8580 | 4487.08 | 328.72 | 9.44 |
8.00 | 52.30 | 66.63 | 5854.07 | 428.87 | 9.37 | |||
10.00 | 54.89 | 82.66 | 7156.97 | 524.32 | 9.31 | |||
300 | 323.9 | 6.30 | 49.36 | 6288 | 10180 | 7932.09 | 489.79 | 11.23 |
8.00 | 62.35 | 17.43 | 9914.07 | 612.17 | 11.17 | |||
10.00 | 77.44 | 98.65 | 12163.24 | 751.05 | 11.10 |
Tata Steel's tube SBU today is a leading manufacturer of welded pipes in the country having an installed capacity of over 5,00,000 mt per annum. Currently, tube SBU manufactures structural, conveyance, automotive and boiler tubes at its plant in Jamshedpur and at some external processing agents (EPA). Tata Structura, the brand of structural tube, conforms to IS:4923 and IS:1161 standards for square, rectangular and circular sections respectively.
Each and every tube manufactures at Tata steel's state of the art facility conforms to the highest quality standards this is a result of superior manufacturing processes and stringent quality control at every step, which is part of Tata steel's ISO 9000 quality management system.

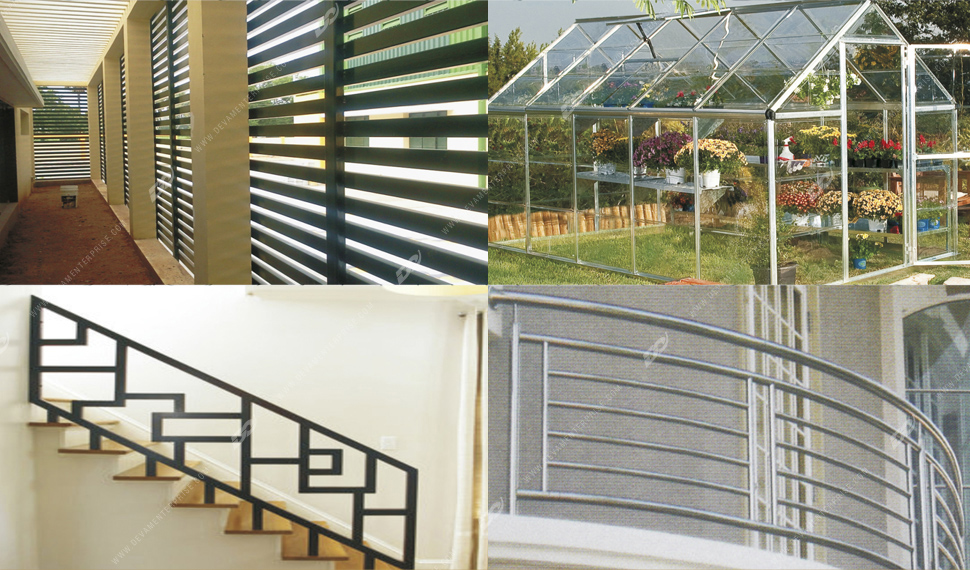

For Small Engineering Work
YST 210 GRADEProperties
VIEW DEALER NETWORKSize | Thickness | Kg per mtr. | Weight/ Piece | |
40 | 20 | 1.6 | 1.38 | 8.25 |
40 | 20 | 1.8 | 1.53 | 9.17 |
40 | 20 | 2 | 1.68 | 10.07 |
40 | 20 | 2.3 | 1.89 | 11.36 |
50 | 25 | 1.6 | 1.75 | 10.51 |
50 | 25 | 1.8 | 1.95 | 11.71 |
50 | 25 | 2 | 2.15 | 12.89 |
50 | 25 | 2.3 | 2.44 | 14.61 |
50 | 25 | 2.5 | 2.62 | 15.73 |
60 | 40 | 1.6 | 2.38 | 14.28 |
60 | 40 | 1.8 | 2.66 | 15.95 |
60 | 40 | 2 | 2.93 | 17.6 |
60 | 40 | 2.3 | 3.34 | 20.03 |
60 | 40 | 2.5 | 3.6 | 21.62 |
60 | 40 | 2.9 | 4.12 | 24.72 |
66 | 33 | 1.6 | 2.35 | 14.13 |
66 | 33 | 1.8 | 2.63 | 15.78 |
66 | 33 | 2 | 2.9 | 17.41 |
66 | 33 | 2.3 | 3.3 | 19.81 |
66 | 33 | 2.6 | 3.69 | 22.16 |
80 | 40 | 1.6 | 2.88 | 17.29 |
80 | 40 | 1.8 | 3.22 | 19.34 |
80 | 40 | 2 | 3.56 | 21.37 |
80 | 40 | 2.3 | 4.06 | 24.36 |
80 | 40 | 2.5 | 4.39 | 26.33 |
100 | 50 | 1.8 | 4.07 | 24.43 |
100 | 50 | 2 | 4.5 | 27.02 |
100 | 50 | 2.3 | 5.14 | 30.86 |
100 | 50 | 2.5 | 5.57 | 33.39 |
YST 210 GRADEProperties
VIEW DEALER NETWORKSize | Thickness | Kg per mtr. | Weight/ Piece | |
20 | 20 | 2 | 1.05 | 6.3 |
25 | 25 | 1.6 | 1.12 | 6.74 |
25 | 25 | 1.8 | 1.25 | 7.48 |
25 | 25 | 2 | 1.36 | 8.18 |
25 | 25 | 2.3 | 1.53 | 9.2 |
25 | 25 | 2.5 | 1.64 | 9.84 |
25 | 25 | 2.6 | 1.69 | 10.15 |
30 | 30 | 1.6 | 1.38 | 8.25 |
30 | 30 | 1.8 | 1.53 | 9.17 |
30 | 30 | 2 | 1.68 | 10.07 |
30 | 30 | 2.3 | 1.89 | 11.36 |
32 | 32 | 1.6 | 1.48 | 8.85 |
32 | 32 | 1.8 | 1.64 | 9.85 |
32 | 32 | 2 | 1.8 | 10.82 |
32 | 32 | 2.3 | 2.04 | 12.23 |
38 | 38 | 1.6 | 1.78 | 10.66 |
38 | 38 | 1.8 | 1.98 | 11.88 |
38 | 38 | 2 | 2.18 | 13.08 |
38 | 38 | 2.3 | 2.47 | 14.83 |
38 | 38 | 2.5 | 2.66 | 15.96 |
38 | 38 | 2.6 | 2.75 | 16.52 |
40 | 40 | 1.6 | 1.88 | 11.27 |
40 | 40 | 1.8 | 2.09 | 12.56 |
40 | 40 | 2 | 2.31 | 13.83 |
40 | 40 | 2.3 | 2.62 | 15.7 |
40 | 40 | 2.5 | 2.82 | 16.91 |
40 | 40 | 2.6 | 2.92 | 17.5 |
50 | 50 | 1.6 | 2.38 | 14.28 |
50 | 50 | 1.8 | 2.66 | 15.95 |
50 | 50 | 2 | 2.93 | 17.6 |
50 | 50 | 2.3 | 3.34 | 20.03 |
50 | 50 | 2.5 | 3.6 | 21.62 |
50 | 50 | 2.6 | 3.73 | 22.4 |
50 | 50 | 2.9 | 4.12 | 24.72 |
60 | 60 | 1.6 | 2.88 | 17.29 |
60 | 60 | 1.8 | 3.22 | 19.34 |
60 | 60 | 2.3 | 4.06 | 24.36 |
80 | 80 | 1.6 | 3.89 | 23.32 |
80 | 80 | 1.8 | 4.35 | 26.13 |
80 | 80 | 2.3 | 5.5 | 33.03 |
YST 210 GRADEProperties
VIEW DEALER NETWORKOD | Thickness | Kg per mtr | Weight/ Piece |
15 | 1.6 | 0.53 | 3.17 |
15 | 1.8 | 0.59 | 3.52 |
15 | 2 | 0.64 | 3.85 |
15 | 2.3 | 0.72 | 4.32 |
20 | 1.6 | 0.73 | 4.36 |
20 | 1.8 | 0.81 | 4.85 |
20 | 2 | 0.89 | 5.33 |
20 | 2.3 | 1 | 6.02 |
25 | 1.6 | 0.92 | 5.54 |
25 | 1.8 | 1.03 | 6.18 |
25 | 2 | 1.13 | 6.81 |
25 | 2.3 | 1.29 | 7.73 |
32 | 1.6 | 1.2 | 7.2 |
32 | 1.8 | 1.34 | 8.04 |
32 | 2 | 1.48 | 8.88 |
32 | 2.3 | 1.68 | 10.11 |
32 | 2.6 | 1.89 | 11.31 |
40 | 1.6 | 1.52 | 9.09 |
40 | 1.8 | 1.7 | 10.17 |
40 | 2 | 1.87 | 11.25 |
40 | 2.3 | 2.14 | 12.83 |
40 | 2.9 | 2.65 | 15.92 |
50 | 1.6 | 1.91 | 11.46 |
50 | 1.8 | 2.14 | 12.84 |
50 | 2 | 2.37 | 14.21 |
50 | 2.3 | 2.71 | 16.23 |
50 | 2.9 | 3.37 | 20.21 |
65 | 1.6 | 2.5 | 15.01 |
65 | 1.8 | 2.81 | 16.83 |
65 | 2 | 3.11 | 18.64 |
65 | 2.3 | 3.56 | 21.34 |
65 | 2.5 | 3.85 | 23.12 |
80 | 1.6 | 3.09 | 18.56 |
80 | 1.8 | 3.47 | 20.83 |
80 | 2 | 3.85 | 23.08 |
80 | 2.3 | 4.41 | 26.44 |
80 | 2.5 | 4.78 | 28.67 |
Devam Enterprise, India provides Fabrication services and erection support using steel hollow sections of Tata structura for construction work of small and medium sized structural sites. We expand our services by taking challenging new projects on product types and fabrication needs. We have competent teams which can facilitate the fabrication and erection of various types of steel structures meant for Architectural, Industrial, Infrastructure and General Engineering applications.
We are expertise in Fabrication services in mechanical and electrical fields as well as government and commercial bodies. Devam Enterprise's fabrication department gives you services by our certified fabricators for in-house, on-site and offshore fabrications.
Our top level service with professional and outstanding record of achievement in this industry helps us to serve you innovative and efficient solutions. We are service oriented business with providing thousands of fabricated parts or single part, whatever is your need we have fabrication services for same.
Devam Enterprise offers turnkey solutions to our valued clients. These solutions include services including design, fabrication and erection along with material supply. The solutions are customised as per the client's specific need, economical and excellent in terms of quality as well. We have dedicated and competent teams with a capability to execute Turnkey solutions for various types of structures meant for Architectural, Industrial, Infrastructural and General Engineering applications.
We are distributor of ITW Buildex in India, ITW Buildex head office is based in Melbourne Victoria with an onsite manufacturing plant producing hundreds of millions of Self Tapping screw.
ITW Buildex is a part of erstwhile Illinois Tool Works (ITW) group which has 825 separate decentralized businesses in 52 countries, and employing over 60,000 worldwide ITW manufactures and services equipment used in the automotive, construction, electronics, food and beverage, packaging, power system, and pharmaceutical industries. We have range of Buildex screw in Gujarat, India.
Self Tapping screw drill their own holes when they screwed into materials in structures. Threads are precisely pattered in to the material with the help of hand screw drivers; ideally self tapping screw are used for combining different materials where access is one sided. These screw come in different sizes and heads.
After choosing right screw you need to assure the length with material's thickness. Fasteners selected by length and diameter this self tapping screw selected by its point size. As a professional self tapping screw supplier, we provide finished screw as well as custom ordered screw for tapping. A gigantic range is available with reasonable price. This screw are commonly used in fasten many objects in different industries.
Devam enterprise is leading supplier of Color coated coils across the world. This color coated coils and sheets are available in different sizes, colors, and specifications depending up on its applications durability and optimization. With having decades of experience in this field leads us to top of the table in list of suppliers in India.
Our premium quality and advanced color coating techniques supply best coils hugely demanded in industries in India. We offer a lot of color coated aluminum coils products and color of your choice. Our coils are rust resistive and life longer because of its unique steel sheets and process. These new generations of life style penetrate us to build quality and gorgeous color coated coils which suits your modern styles.
These coated coils are building from cold and hot metal coil galvanized coating aluminum alloys and stainless steel. With surface laminated or coated with premium quality colors. Aluminum's density is one third of galvanized steel. So we carefully select leveling, coils weights, joints, designs, strip transfers to assure the quality of aluminum color coated coils.
Devam Enterprise offers fastening solutions in India with variety of roofing applications at effective costs. Select from our wide range of products in Roofing fasteners with different physical data and application specifications.
Since many decades the roofing industry has been growing drastically with quality components of roof and fasteners. We offer commercial roofing solutions for your industrial projects. Our Structural Engineers will perform diagnosis for the dimension of roof. Fasteners are used to joint different components.
There are several attachment methods like fully adhered, cold process, vacuum, self adhered available and fasteners fasten a roofing components to roof deck for support. This fastener is design to secure insulation and other standards. Please provide us the detailed project analysis report to get started with best roofing solutions.
